Product Description
The variable frequency pump control cabinet system adjusts the output frequency through the PID controller built into the frequency converter system based on the detected pipeline pressure, thereby achieving constant pressure water supply in the pipe network. The frequency converter's frequency limit signal (generally used as the pipe network pressure limit signal) can notify the PLC in a timely manner for variable frequency pump switching. To prevent water hammer phenomena, the pump's switching will be interlocked with its outlet valve.
Key Functions
- Core Features:
- Adjusts equipment working frequency
- Reduces energy consumption
- Enables smooth equipment startup
- Reduces motor damage from high startup current
- Operating Conditions:
- Altitude not exceeding 2000m (derating required above 2000m)
- Ambient temperature between -25℃ and +40℃
- Relative humidity not exceeding 95%, no condensation
- Vibration less than 0.5G
System Features
- Control System:
- Built-in PID control algorithm
- Automatic pressure regulation
- Intelligent pump switching
- Water hammer prevention
- Protection Features:
- Overload protection
- Phase loss protection
- Short circuit protection
- Temperature monitoring

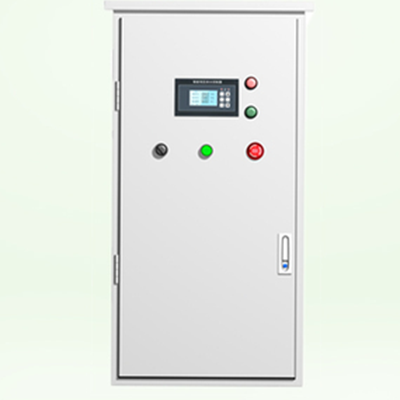

Equipment Photos
