Product Description
The LED display screen is primarily used for smart agriculture data display and company news information publishing. The control system supports local computer control through RS485 signal connection, facilitating daily management and on-site operation.
Technical Parameters
| Pixel Matrix |
- LED diameter: 5mm - Pixel pitch: 10mm (default) - Diode chip: Y3464 - Pixel density: 10,000 dots/m² |
| Display Module |
- Resolution: 16(X) × 32(Y) dots - Module size: 160mm × 320mm |
| Visual Parameters |
- Viewing angle: Horizontal ≥110°, Vertical: 10° up, 40° down - Brightness: ≥1600cd/m² - Optimal viewing distance: 10m-100m |
| Display Features |
- Display mode: VGA synchronous - Drive method: 1/4 constant current - Brightness adjustment: 8 levels software control - Gray levels: 4096 levels - Frame rate: ≥60fps |
| System Parameters |
- Communication distance: 100m (fiber optic up to 15km) - Pixel failure rate: <0.02% - Maximum power consumption: 300W/m² - Continuous operation: ≥72 hours |
| Operating Environment |
- Temperature: -25℃ to +60℃ - Humidity: 10%-95% RH - Power supply: AC 50-60Hz, 220V±15% - Protection: Over-temperature, over-current, over-voltage |

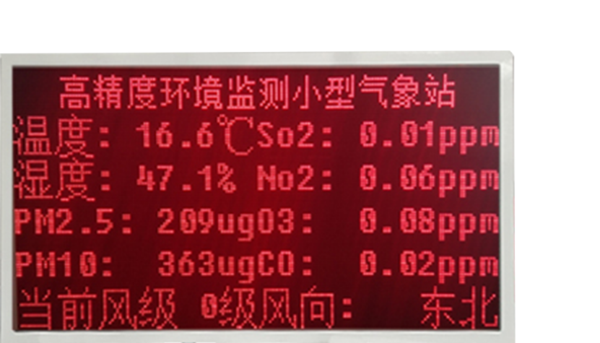

Equipment Photos
