Product Description
The Pest Monitoring Light is specially designed for agricultural and forestry pest monitoring. This device utilizes modern light, electrical, and digital control technology to achieve automatic far-infrared pest processing, automated operation of the entire light system, and can be configured with automatic insect collection bottle switching and pixel adjustment functions. It can automatically complete tasks such as pest attraction, killing, collection, and water drainage. It is widely used in agriculture, forestry, and animal husbandry sectors.
Technical Parameters
| Power Supply | AC220V±60V |
| Power Consumption | Standby state ≤5W; Total power ≤350W |
| Attraction Light Source | 20W black light tube (main wavelength 365nm, other wavelengths customizable) |
| Impact Screen | 120-degree angle, explosion-proof glass material with 3C certification |
| Far-infrared Pest Processing Chamber Temperature Control | Reaches 85±5℃ after 15 minutes of operation |
| Light Body Dimensions | 650mm*650mm*2000mm |
Performance Features
- Independent far-infrared pest processing chamber for more effective pest killing and drying
- Far-infrared pest processing mortality rate not less than 98%, pest body integrity rate not less than 95%
- Automatic light operation at night and standby mode during day, not affected by instantaneous strong light during nighttime operation
- Time period control: Set working time periods based on target pest behavior patterns
- Rain control device switch: Automatically drains rainwater, effectively separates rain and insects, can also be configured to automatically control working status based on external rainfall changes

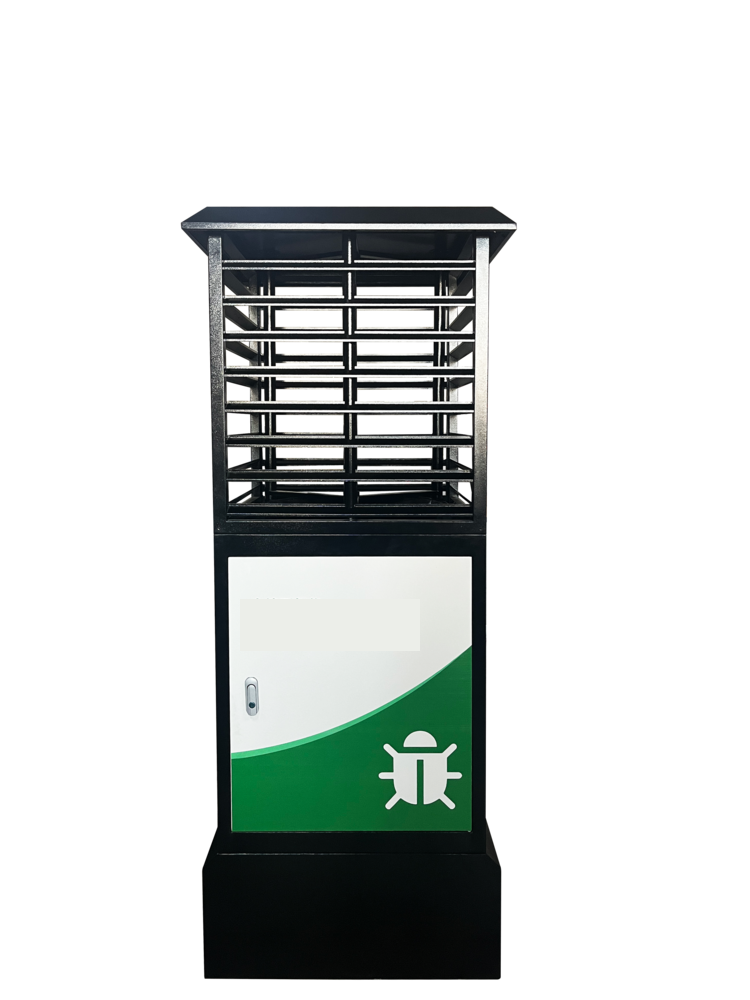

Equipment Photos
Captured Pest Photos
Platform Control Interface

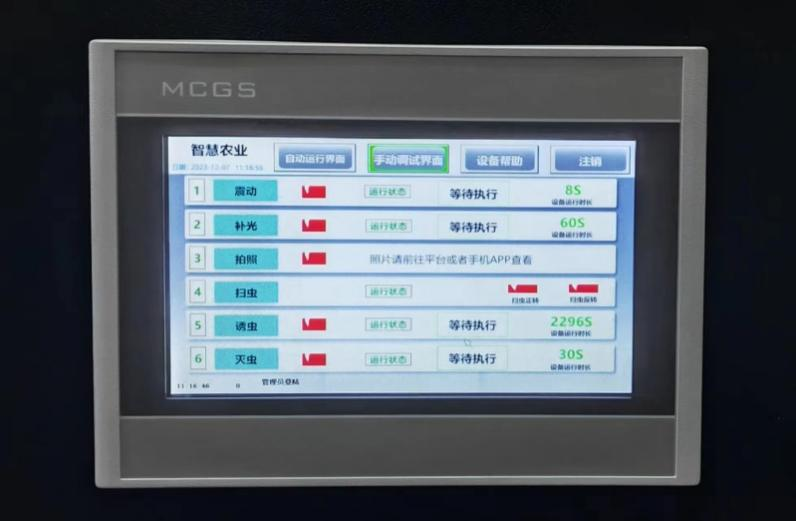

Device Control Interface
