Product Description
The Smart Spore Capture Device is a new generation of image-based pathogen monitoring tool, specifically designed to collect airborne pathogenic spores and pollen particles. It is primarily used to detect disease spore levels and their dispersal dynamics, providing reliable data for predicting and preventing disease outbreaks and transmission. The device consists of spore capture mechanism, spore carrier system, image acquisition system, industrial control touchscreen, network transmission module, and power supply.
Technical Parameters
- Data Transmission: 4G/5G network (optional)
- Operation Settings: Standby mode, customizable 24-hour operation schedule
- Image Capture: Automatic timed capture, remote parameter configuration via network platform
- Slide Capacity: 365 slides, suitable for 365 days (one slide per day)
- Slide Specifications: Length 76.2mm, Width 25.4mm, Thickness 1-1.2mm
- Power Supply: 220V AC or solar power system
- Air Inlet Velocity: 0.3-5m/s
Performance Features
- 10-inch HD capacitive touchscreen with Windows operating system, offering excellent human-machine interface
- 1000x magnification microscopic imaging system for automatic high-definition microscopic photography of captured pathogenic spores
- 24/7 automatic spore capture and photography
- Fully automated operation for slide loading, spore capture, microscopic imaging, and used slide recovery
- Remote and local programming capabilities with network-based remote configuration
- Built-in GPS positioning for device location tracking on map
- Time-based operation: Adjustable working periods based on target pathogen spore activity patterns
- Device status monitoring with remote control capabilities via central platform
- Remote configuration of device power, working periods, image capture frequency, and upload frequency

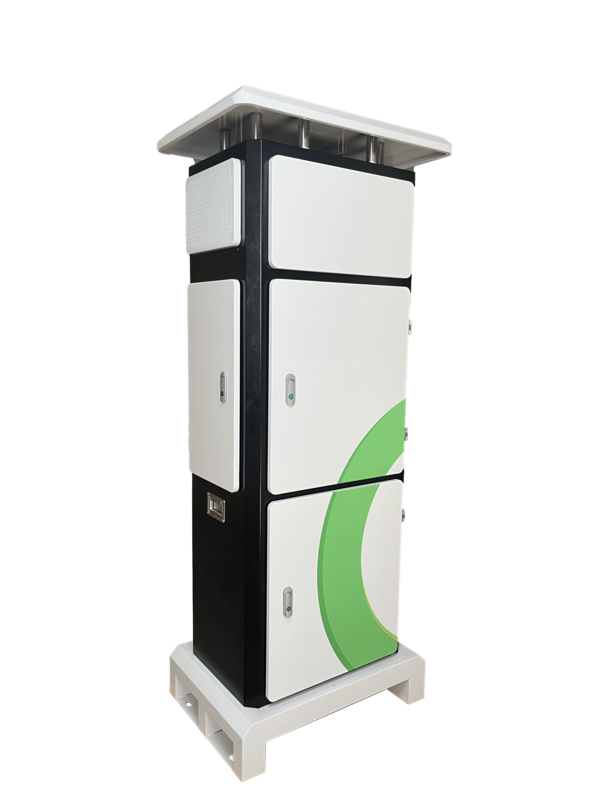

Equipment Photos

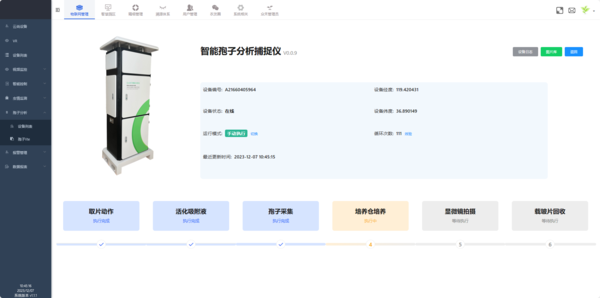

Platform Interface

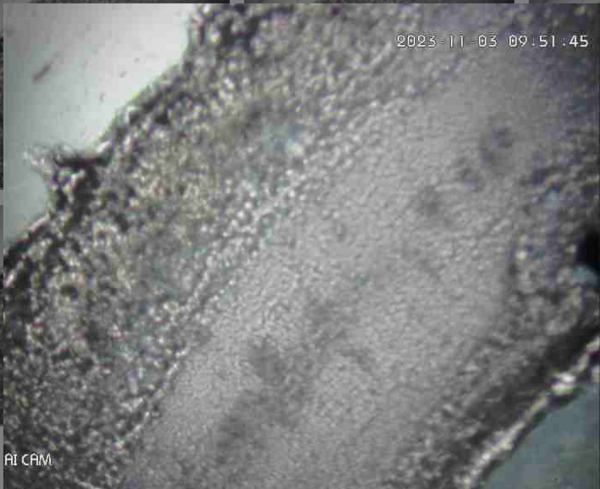

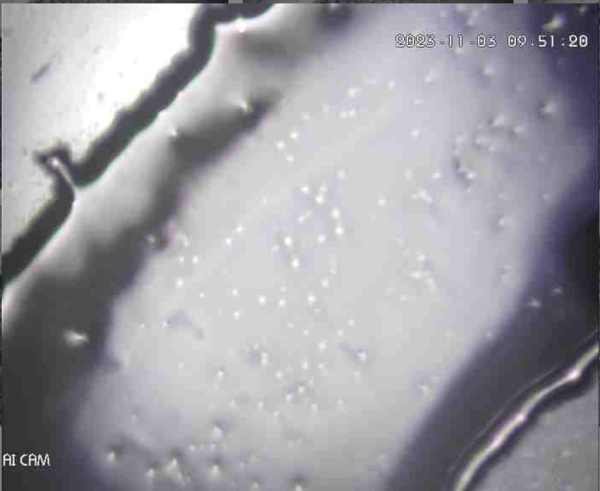

Captured Spore Images
