Product Description
Compared to the slide-type smart spore capture device, the strip-type smart spore capture device offers advantages such as simpler structure, lower consumable usage, and more economical pricing. It can similarly achieve image-based pathogen monitoring, collecting airborne pathogenic spores and pollen particles. The device is used to detect disease spore levels and their dispersal dynamics, providing reliable data for predicting and preventing disease outbreaks and transmission.
Technical Parameters
| Data Transmission | 4G/5G network (optional) |
| Power Supply | AC 220V ±5% |
| Power Consumption | ≤100W |
| Air Inlet Velocity | 0.3-5m/s |
| Sample Strip Specifications | Length: 150M, Width: 0.025M (sufficient for 600 days) |
Performance Features
- Built-in 80W solar power system with 40AH battery, no external power required
- Imaging System:
- Optical magnification: 2X, 5X, 10X options
- Can clearly photograph spores as small as 5-100μm
- Equipped with 5MP CMOS image sensor (8MP or 12MP optional)
- Built-in Sample Strip:
- Single load can operate continuously for up to 365 days
- Takes 3 photos per day
- Cumulative display of current usage
- Platform reminder when strip is nearly depleted
- 7+ inch display screen with Windows system
- Local display of captured spore photos and historical records
- Remote system upgrade capability

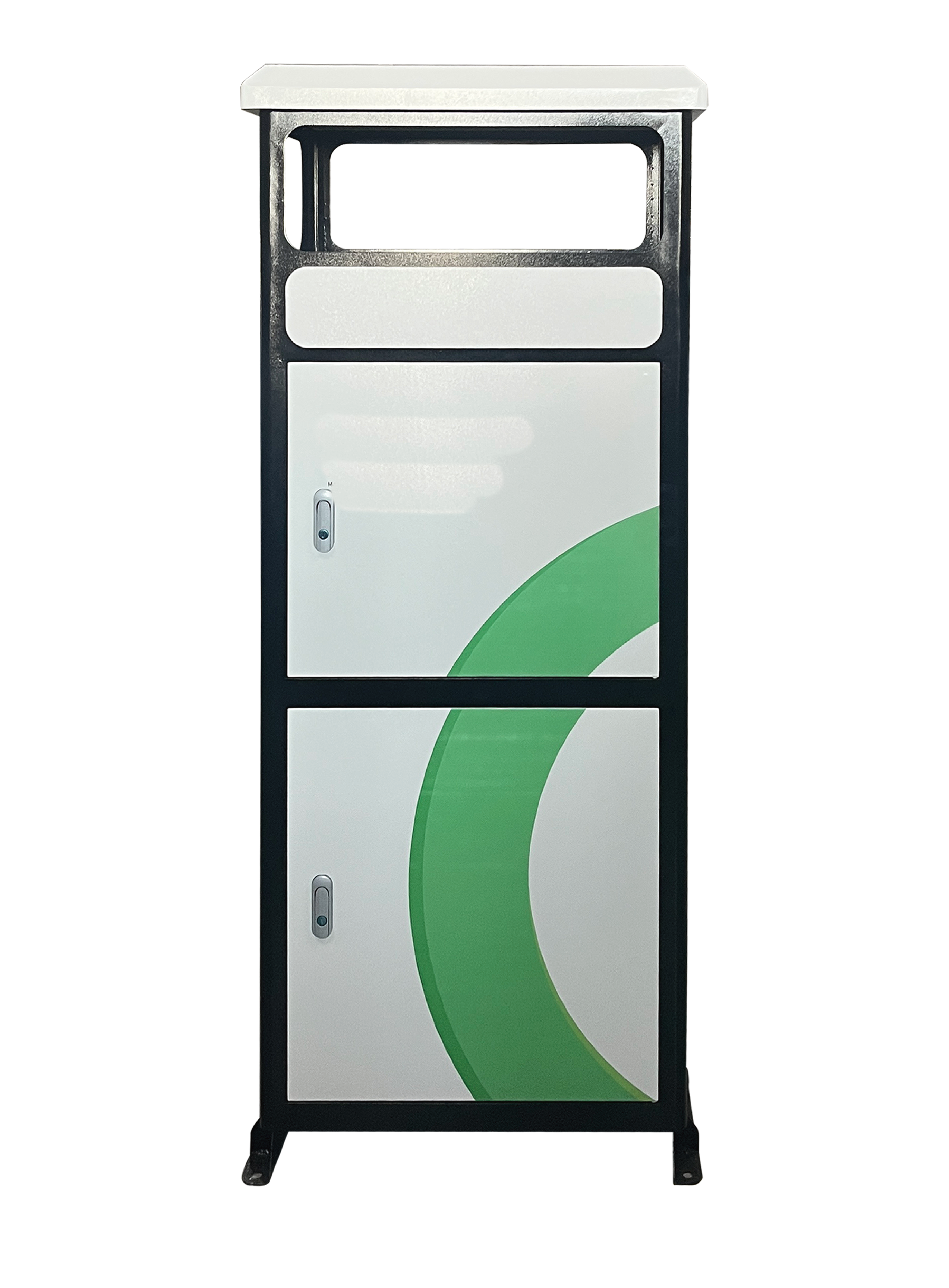

Equipment Photos
