Product Description
The soil moisture monitoring station is designed for continuous field monitoring of soil conditions, including soil temperature, soil moisture, soil conductivity, and soil pH. Through professional data collection and communication cables, it connects to computers for data transmission to the meteorological database for statistical analysis and processing. The system is widely applicable in meteorology, agriculture, geology, environmental monitoring, and field scientific research.
Technical Parameters
| Data Transmission | 4G transmission |
| Power Supply | Solar power, Solar panel ≥10W, Battery ≥10AH |
| Soil Temperature | Range: -30-70℃, Accuracy: ±0.5℃, Resolution: 0.2℃ |
| Soil Moisture | Range: 0-100%, Accuracy: ±3%, Resolution: 0.1% |
| Soil pH | Resolution: 0.1pH, Accuracy: ±0.5pH, Temperature range: -20-60℃, Temperature accuracy: 0.1℃ |
| Soil Conductivity | Range: 0-10000us/cm, Accuracy: ±3%, Resolution: 1us/cm |
| Measurement Depths | Can measure soil volumetric water content and temperature at different depths (10, 20, 30, 40cm), Standard: 1 layer depth |
Performance Features
- System Components:
- Soil sensors
- 4G edge computing gateway
- Power system
- Field protection box
- Stainless steel support frame
- Sensor Features:
- Specialized soil sensors for temperature, moisture, and salinity
- High accuracy and reliability
- Professional-grade components
- Data Collection:
- 4G edge gateway for data collection
- Directional data transmission
- Remote IP and port modification
- Base station positioning
- Watchdog functionality

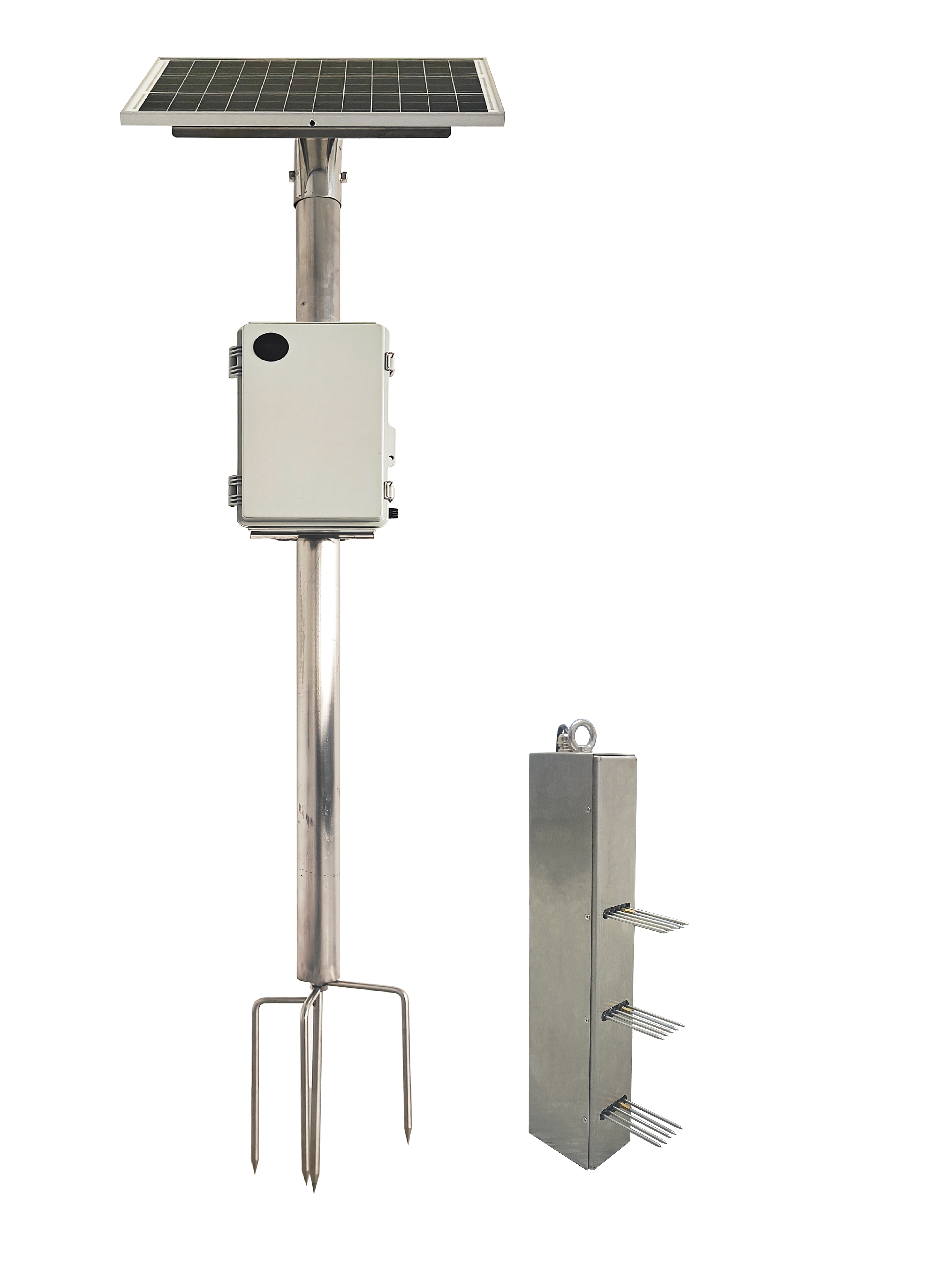

Equipment Photos

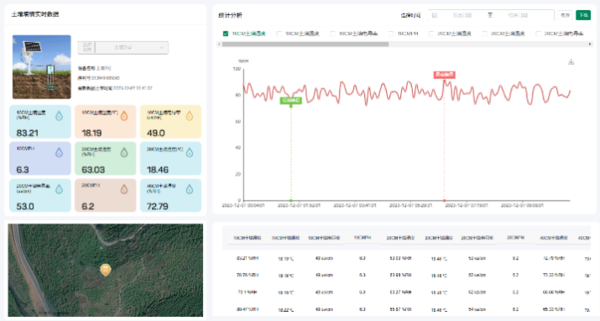

Platform Interface
