Product Description
The weather station is designed for 24/7 field monitoring of key meteorological elements including wind speed, wind direction, rainfall, air temperature, air humidity, and atmospheric pressure. Through a professional data collection host, all meteorological parameters are unified managed and displayed locally. The data can be transmitted to the server's meteorological database via 4G/WIFI/Ethernet for classification, statistical analysis, and processing. It is applicable for meteorology, agriculture, geology, environmental monitoring, and field scientific research.
Key Features
- Power System:
- 100W monocrystalline solar panel
- 30AH lithium-ion battery
- Data Collection:
- Uses 4G edge gateway to collect device data
- Directional data transmission
- Remote IP and port modification capability
- Base station positioning
- Watchdog functionality
- Hardware Features:
- High-quality PVC control box (50*40*30)
- UV-printed surface
- Metal aviation waterproof connectors
- Integrated installation service
Sensor Parameters
| Air Temperature | -30℃ to 70℃, Accuracy: ±0.3℃ |
| Air Humidity | 0-100%, Accuracy: ±3% |
| Atmospheric Pressure | 0-1100.0Hpa, Accuracy: 0.1Hpa |
| Wind Direction | 0-359°, Accuracy: ±1° |
| Wind Speed | 0-30m/s, Accuracy: ±1m/s |
| Rainfall | 0-4mm/min, Error: ±4% |

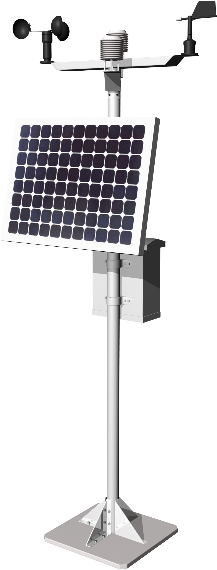

Equipment Photos

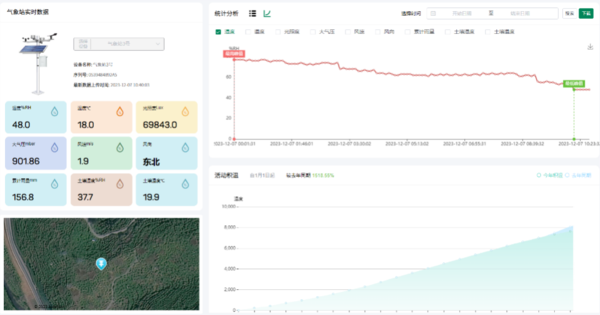

Platform Interface
