Product Description
The device is designed to detect airborne pathogenic spores and pollen particles. It is primarily used to monitor disease spore levels and their dispersal dynamics, providing reliable data for predicting and preventing disease outbreaks and transmission. This is essential equipment that agricultural plant protection departments should be equipped with for crop disease monitoring.
Technical Parameters
| Power System | Built-in 80W solar panel with 40AH lithium battery system |
| Maximum Power | 50W |
| Timer Settings | Up to 10 time periods configurable |
| Air Inlet Velocity | 0.3-5m/s |
| Slide Specifications | Length: 76.2mm, Width: 25.4mm, Thickness: 1-1.2mm |
| Insulation Resistance | ≥2.5MΩ |
| Design Lifespan | 5 years |
Performance Features
- Compliant with GB/T 24689.3-2009 Plant Protection Machinery Spore Capture Device standards
- Adjustable working modes:
- Timed operation
- Continuous operation
- System Integration:
- Configurable reminder intervals for semi-automated slide changes
- Ensures no missed collections
- Compatible with electronic microscope systems
- Platform supports spore observation image uploads
- Spore species registration capabilities
Equipment Photos

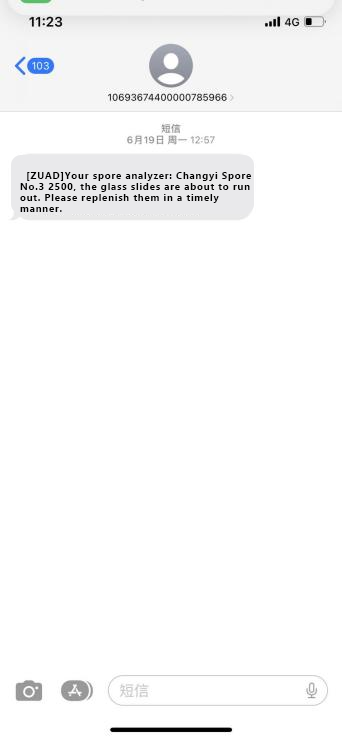

Mobile Notification Interface
