Product Description
The high-altitude pest monitor uses high-intensity searchlights for pest attraction, with a projection distance of up to 1000 meters. This design overcomes the limitations of traditional pest monitoring lights in attracting migratory pests, making it specifically engineered for monitoring migratory pest species.
Technical Parameters
| Power Consumption | Standby state ≤5W, Total power ≤1200W |
| Attraction Light Source | Maximum 1000W halogen searchlight |
| Power Supply | AC220V±60V with voltage stabilizer ensuring 220V±5% output, includes leakage protection. Solar power system not recommended |
| Impact Screen | 120-degree angle, Single screen dimensions: Length 595±2mm, Width 213±2mm, Thickness 5mm |
Performance Features
- Customizable halogen searchlight with projection reaching over 1000 meters in height
- Time period control: Set working periods based on pest behavior patterns
- Local PLC-based basic equipment control with remote platform operation logic to ensure stable operation
- Can be equipped with additional environmental parameter interfaces:
- Wind speed and direction
- Ground temperature and moisture
- Light intensity
- Rainfall
- Network connectivity: Multiple options available
- 4G/5G mobile networks
- WiFi connection
- Wired network connection

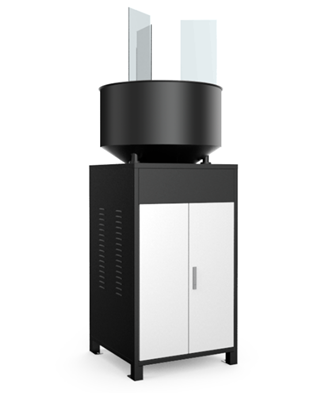

Equipment Photos
