Product Description
The Sailboat-type Pest Monitor features a unique design with dimensions of 4000mm in height and 700mm in width. The arc-shaped design enhances airflow and insect collection efficiency while ensuring durability and stability in various weather conditions.
Key Features
- Design and Construction:
- Stainless steel construction with powder coating
- Sailboat-inspired design with central hollow structure
- Combines practicality with aesthetic appeal
- Pest Capture and Operation:
- 24/7 continuous operation capability, including during rainfall
- Automatic attraction system using UV light for enhanced capture efficiency
- Multiple wind tunnel design for batch insect collection
- Automation Features:
- Fully autonomous operation requiring no manual intervention
- Automatic restart and self-check after power recovery
- Built-in automatic cleaning system for capture plate
- Control System:
- 7-inch full-color touchscreen interface
- PLC control system for stable and precise operation
- Remote control via touchscreen, PC, mobile app, and WeChat mini-program
- Imaging System:
- 12MP high-definition camera
- Adjustable photo capture frequency
- Automatic image processing with insect segmentation and counting
Advanced Features
- Insect Processing:
- Far-infrared technology for insect processing
- Operating temperature range: 80°C - 120°C
- 98% processing completion rate
- Remote Management:
- Power control and photo interval adjustment
- Work mode selection (light/time control)
- Real-time monitoring of battery level, signal strength, device location
- Temperature, humidity, and heating parameter monitoring
- Data Analysis:
- Visualization of pest occurrence trends
- Integration with weather reports for better analysis
- Circular and bar charts for insect distribution and population ranking
- Coverage Area:
- Effective coverage: 100-200 mu
- Varies based on local environmental conditions and insect density

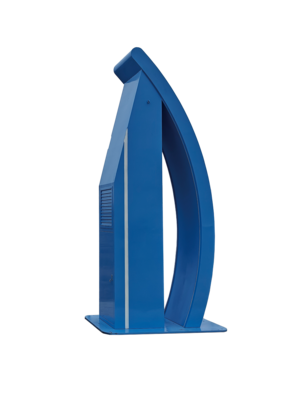

Equipment Photos
